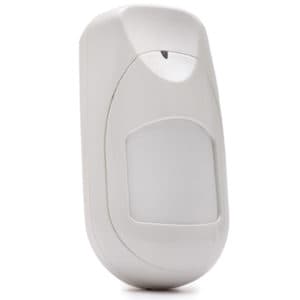

CAT Ignore PIR

  • Two models are available, PIR and PIR C for living spaces containing curtains
  • Flexible Mounting Height
  • Pet immunity
  • Operational up to 5 years with one user replaceable CR123A battery
  • Supervised for low-battery, cover-tamper, and removal from mounting surface tamper conditions


Dimensions: 111 mm x 60 mm x 43 mm (4.4 in x 2.4 in x 1.7 in )
Weight: 0.15 kg (0.33 lb)
Power/Voltage: One CR123A Lithium battery, 3 VDC
Battery life: Up to 5 years Upon power-up, factory test mode lasts for approximately 10 sec.
Voltage threshold: 2.4 V
Temperature: Functional range: -10゚C to +55゚(+14゚F to +131゚F) UL only: 0゚C to +49゚C (+32゚F to+120゚F) EN 50130-5 Class II only: -10゚C to 55゚C (+14゚F to +131゚F IP30/IK04
Environment: Complies with EN50130-5 Class II
Relative Humidity: Up to 93% non-condensing
Cover and Wall Tamper Switch1: Transmits a tamper switch signal when the detector is removed from its base, or pulled away from the wall.
Frequency: 433.42 MHz
Use: Intended for indoor use.
