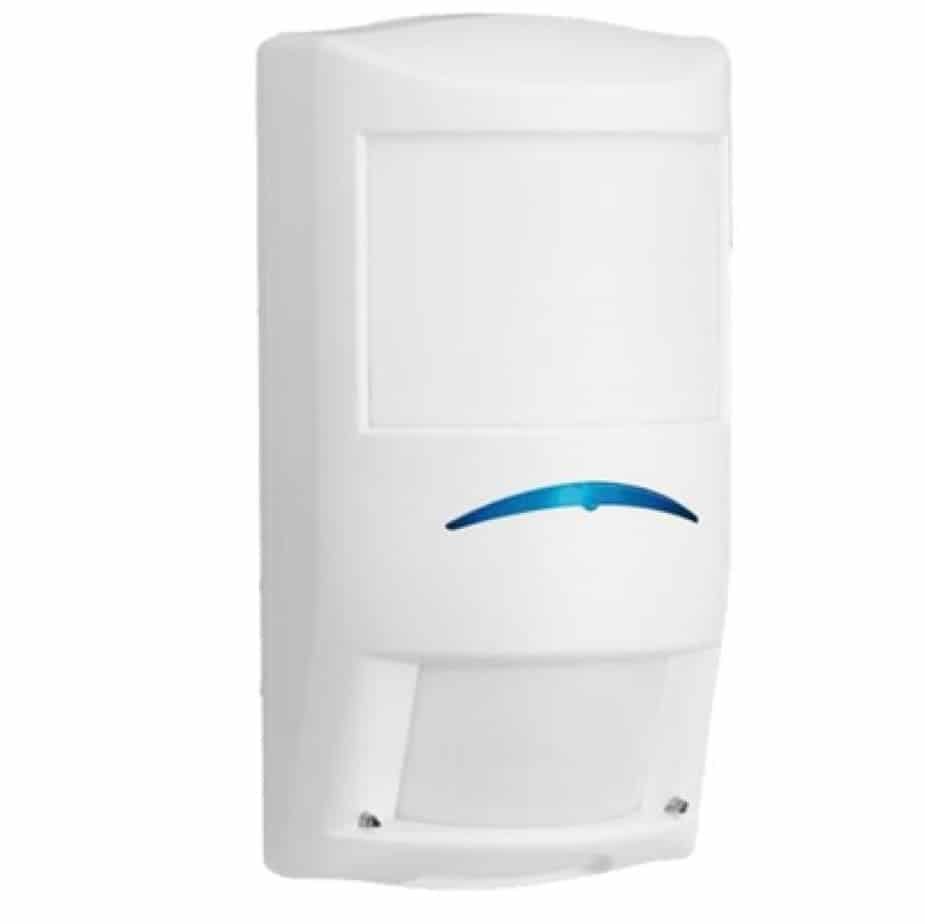

Anti-Mask PIR

  • 30 m (100 ft) x 2.6 m (8.5 ft) standard coverage
  • Sensor data fusion technology
  • Tri-focus optics technology
  • Range adaptive radar
  • MANTIS anti-mask
  • Active white light suppression
  • Dynamic temperature compensation
  • Remote walk test
  • Alarm memory
  • Draft and insect immunity
  • 2.1 m to 3 m (7 ft to 10 ft) mounting height, no adjustments required
  • Cloak and Camouflage Detection Technology (C2DT)
Category:

Description

Voltage (operating): 9 VDC to 15 VDC
Current (maximum): < 26 mA with alarm, trouble, and LEDs active Current (standby): 18 mA at 12 VDC
Tamper: Normally-closed (NC) contacts (with cover on) rated at 25 VDC, 125 mA maximum Connect tamper circuit to 24-hour protection circuit
Trouble: Solid state relay normally-closed (NC) contacts
Alarm relay: Solid state relay, normally-closed (NC) contacts, power supervised 3 W, 125 mA, 25 VDC, resistance < 10 Ω Color: White Dimensions: 127 mm x 69 mm x 58 mm (5 in. x 2.75 in. x 2.25 in.)
Material: High-impact ABS plastic
Alarm indicator: Blue LED for TriTech+ alarms
Yellow LED for microwave alarms
Red LED for PIR alarms
Zones: 86
Relative humidity: 0 to 95%, non-condensing
Temperature (operating and storage): -30°C to +55°C (-22°F to +130°F)
Protection rating (EN 60529, EN 50102): IP 41, IK04
