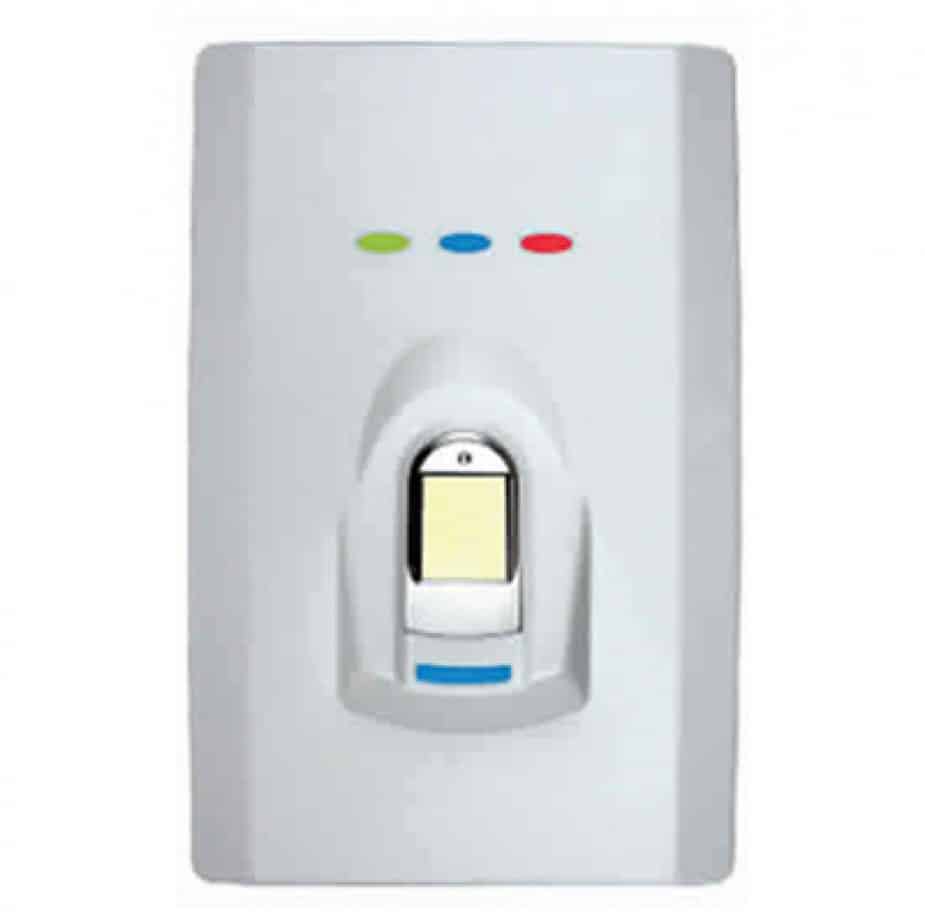

Fingerprint Reader

  • Weatherproof and waterproof design
  • Indoor and outdoor use
  • LCD
  • Keypad
  • RF card reader


CPU: 400 MHz DSP
Memory:8 MB flash + 16 MB RAM
Fingerprint sensor: 500 dpi optical sensor
Identification speed: 2,000 matches in 1 second
Fingerprint capacity: 5,000 fingerprints (10,000 templates)
Log capacity: 50,000 events
RF card: Mifare (13.56 MHz)
Authentication: Finger and/or PIN and/or Card
Network interface: TCP/IP, RS485
Wiegand: 1 channel(input/output switchable)
TTL I/O: 2 inputs for exit switch and door sensor
Internal relay: Deadlock, EM lock door strike, automatic door
Ingress protection rate: IP 65 class
LCD: 128 x 64 pixel, black & white
Keypad: 3 x 4 keypad, 3 navigation keys
Sound and interface: Multi-color LED and multi-tone buzzer
Operating voltage: 12 Vdc
Size (W x H x D): 60 x 185 x 40 mm
