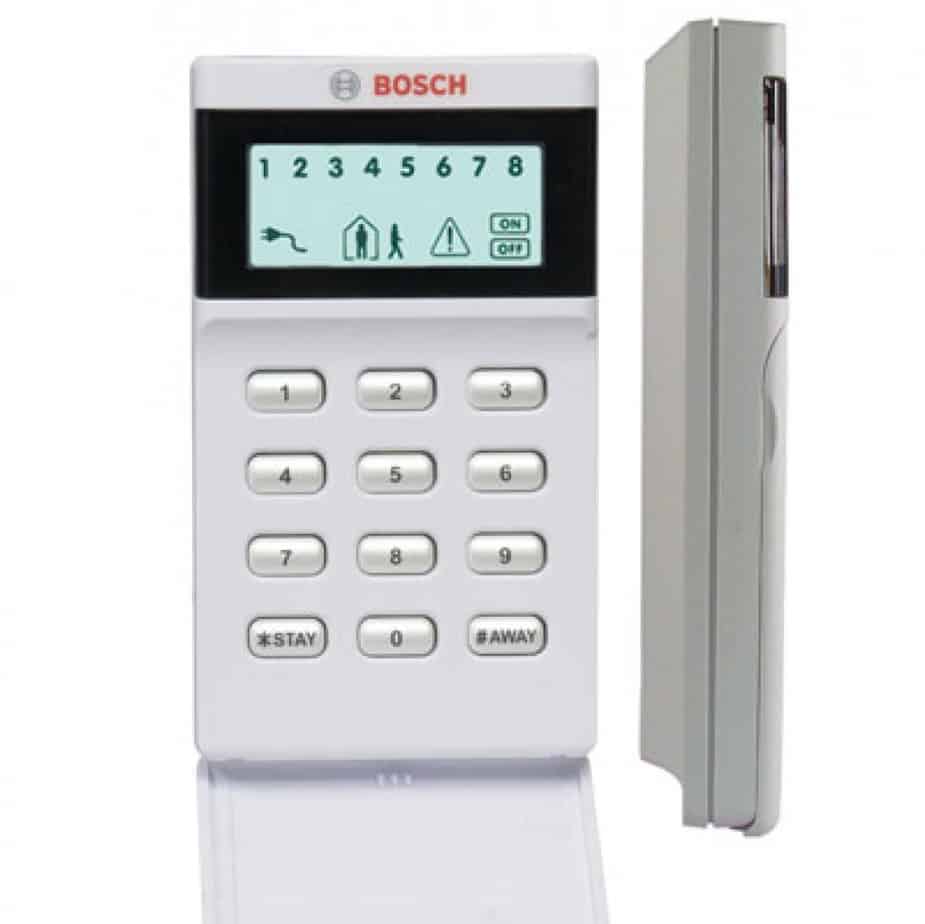

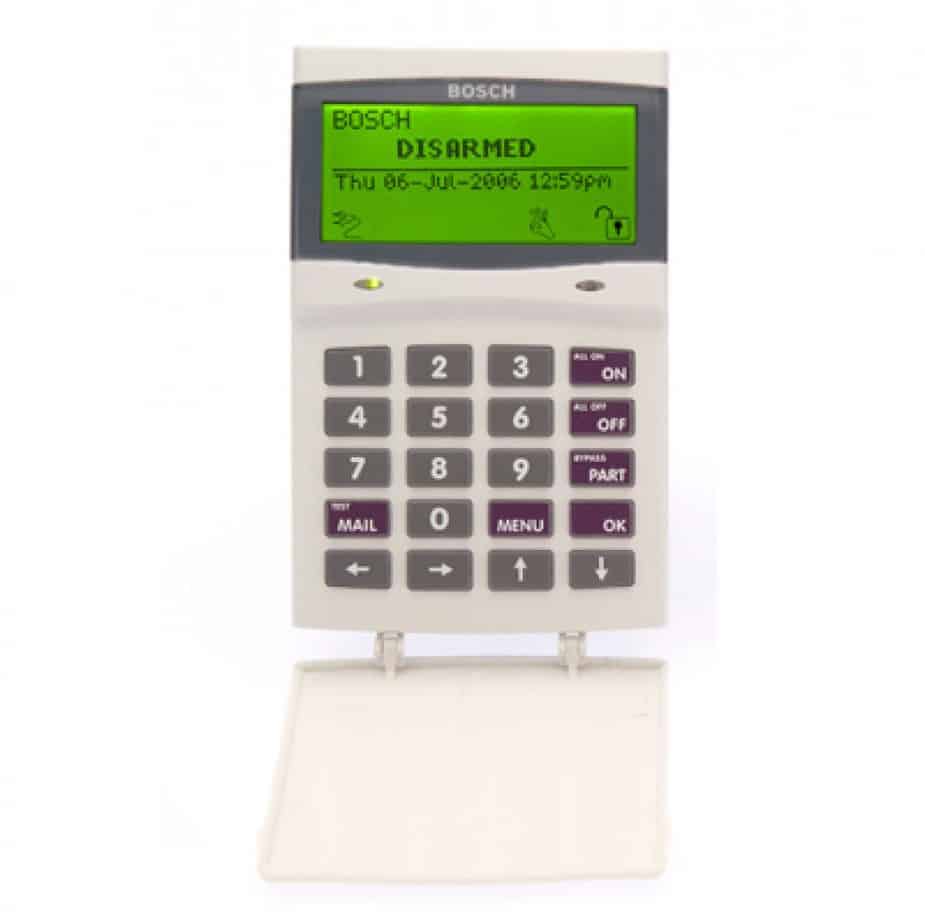

Internal Keypad

  • 2-line LCD display
  • Arm/ready to arm, all/part, trouble, and power status indicators
  • Separate mounting plate base and chassis design
  • Available with English function keys or icon function keys
Categories: ,


Terminal wires: 1.02 mm to 0.65 mm (18 AWG to 22 AWG)
Relative humidity: 5% to 93% at +32°C (+90°F) non-condensing
Temperature (operating): 0°C to +50°C (+32°F to +122°F)
Dimensions: 139 mm x 118 mm x 23 mm (5.5 in x 4.7 in x 1 in)
Weight: 0.30 kg (11.2 oz)
Material: Acrylonitrile butadiene styrene (ABS) Poly(methyl methacrylate) (PMMA)
Display window: 2 line display 18 characters per line
Indicators: Illuminated keys Status indicators Warning and indicating tones
Current: 35 mA in standby mode 70 mA in alarm mode
Voltage (input): 12 VDC nominal
